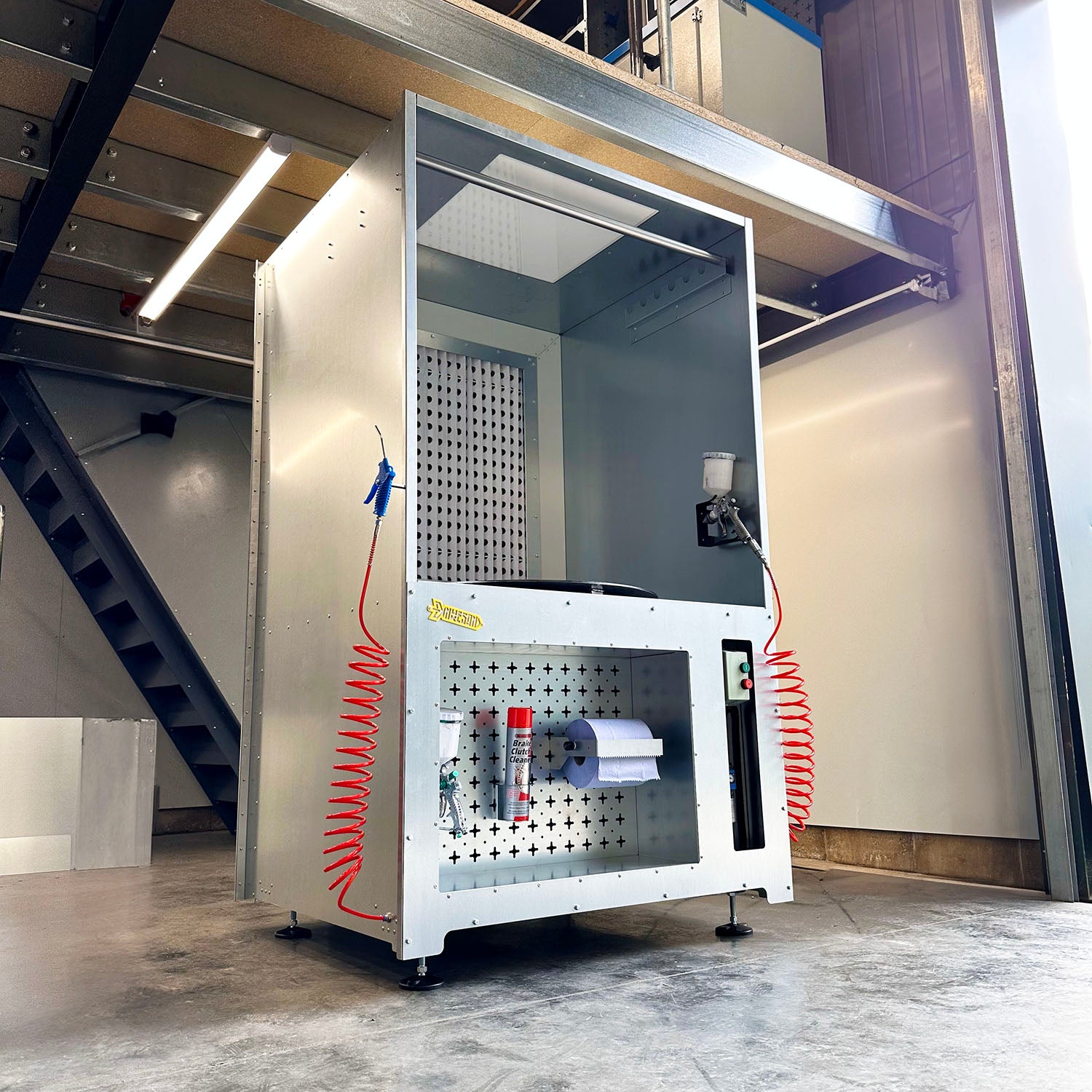

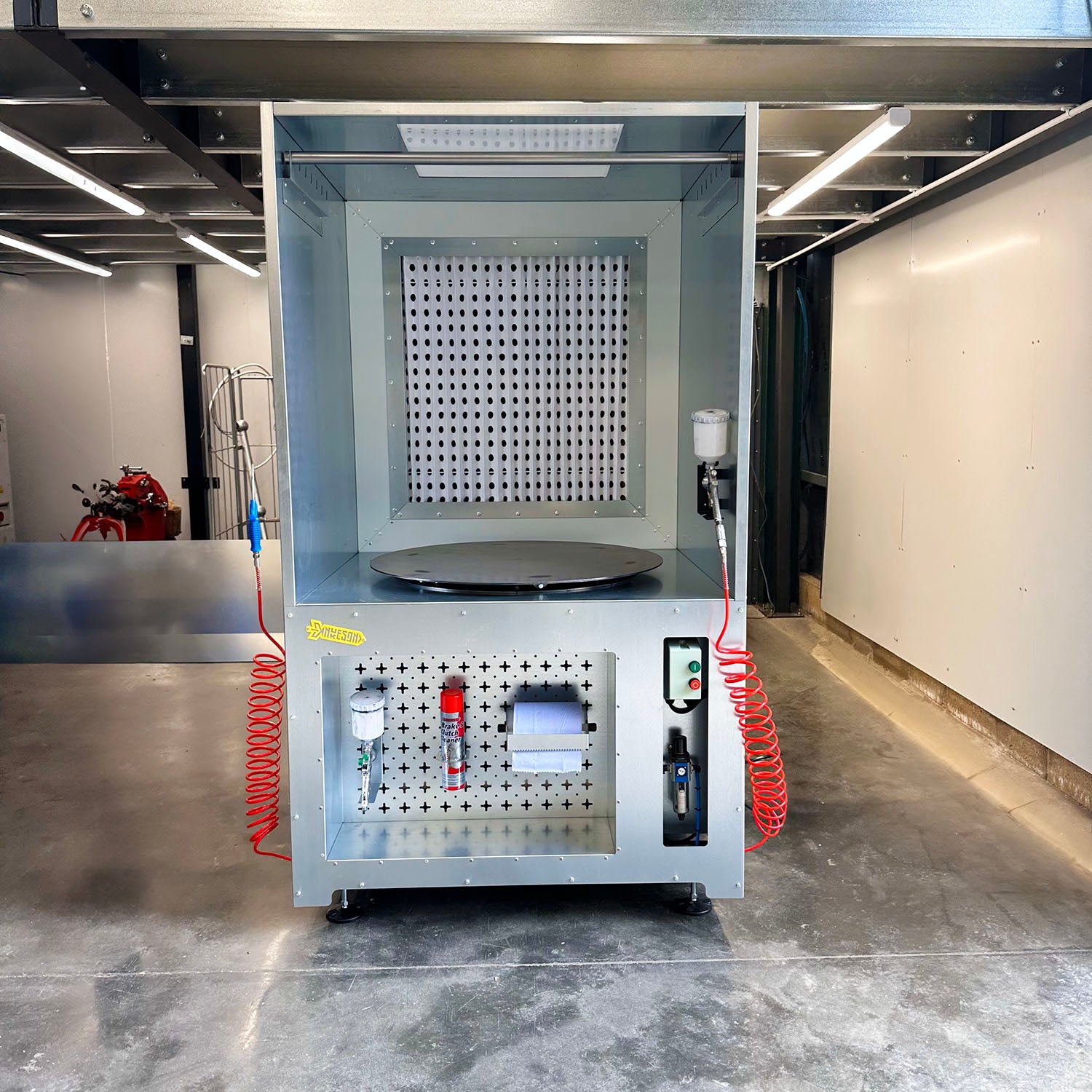

The Nukeson Spray Booth has been designed to allow the booth to be installed within industrial environments such as body repair shops, as well as at home within your own personal workshop or garage area.

It is fully compatible with popular spray gun brands such as Devilbiss, SPRAYIT, Neiko & SATA and the booth also makes a brilliant location for any aerosol-based spray-painting tasks. This will come fully assembled and ready for use.

Suggested Uses:

Alloy wheel refurbishment.

Cabinet door spraying.

Food spraying.

Large valves and motors spraying.

Musical instruments spraying.

Infinite other uses for spraying and painting products, components and items.

Key Features:

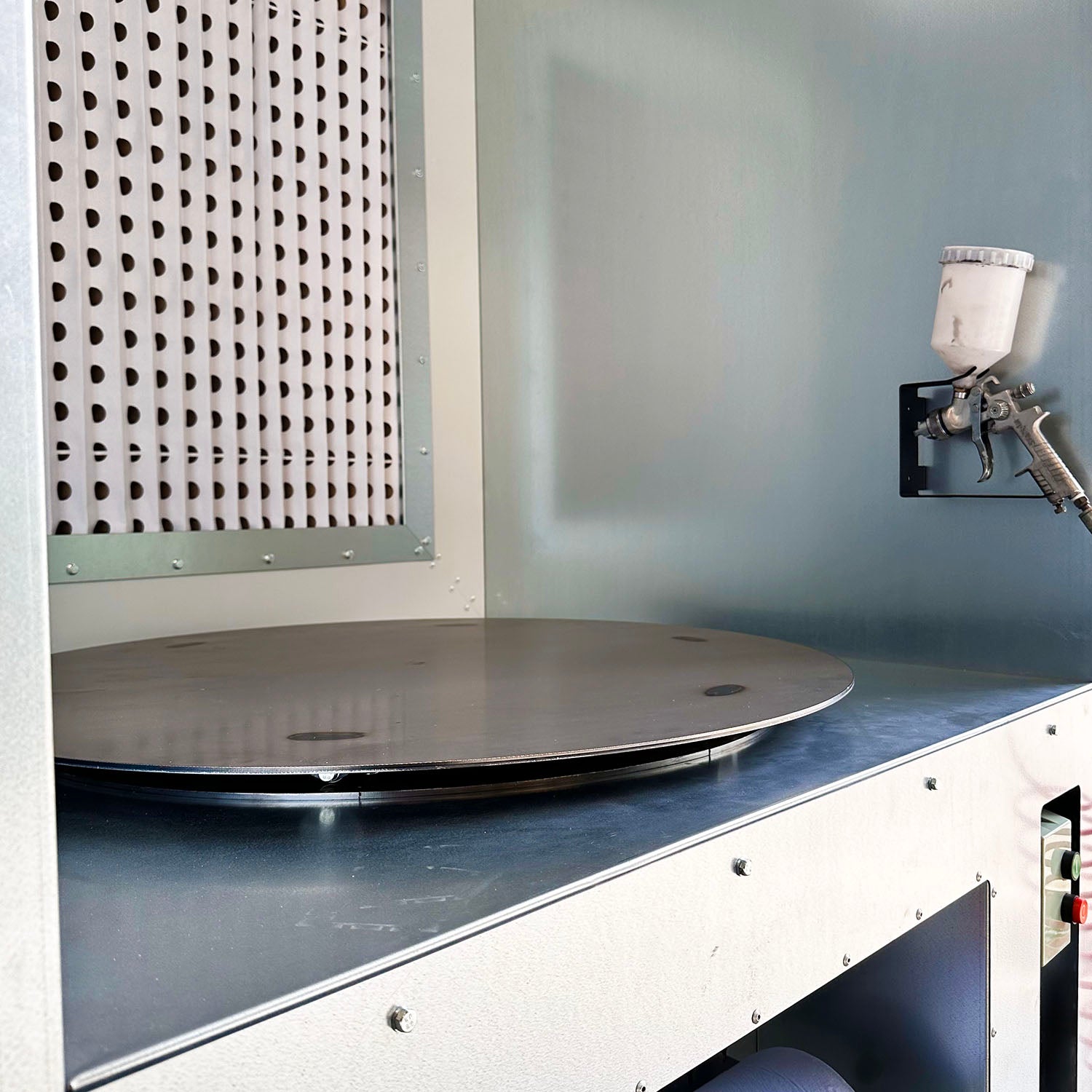

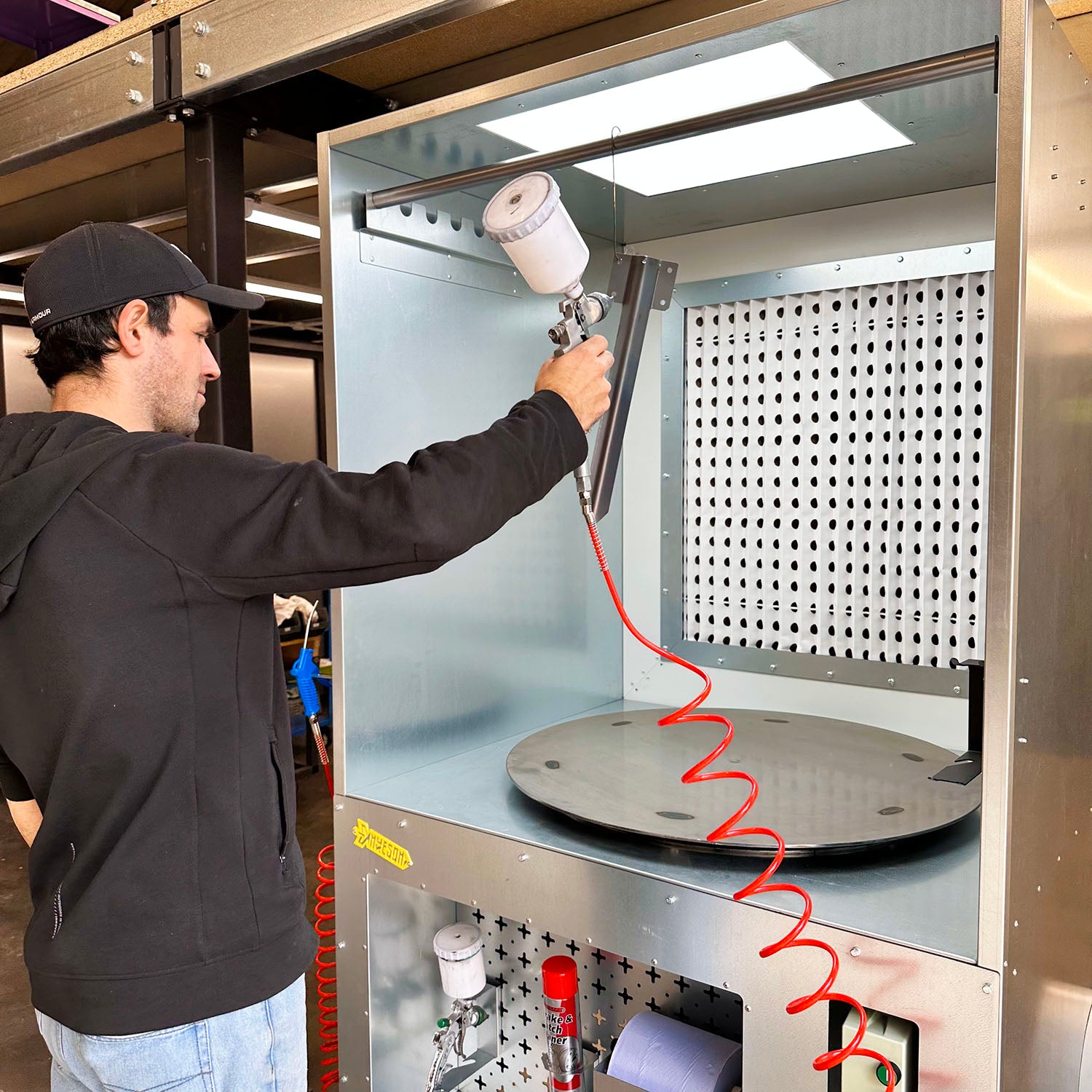

Integrated Turntable - Need to spray something all the way around? Let the turntable do the work for you so you don't need to move, excess motion will be a thing of the past! Max load of 150kg.

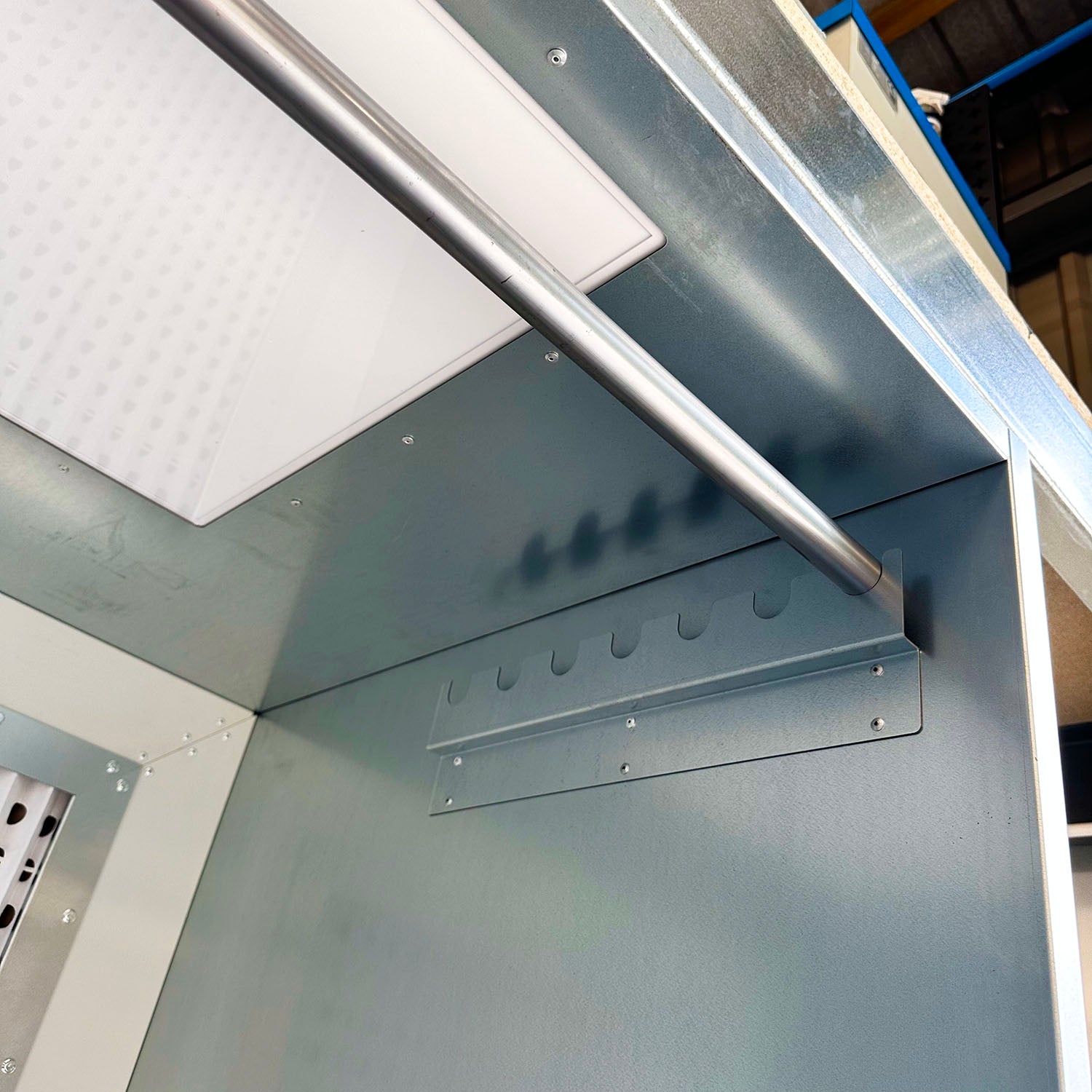

Easily Hang Your Items - Use the built-in adjustable 1050mm overhead hanging bar to hook all your items up with ease

Built-in Storage & Features - Built-in 3 x spray gun storage brackets and built-in spray gun hose line (10mm spray gun line inlet connection)

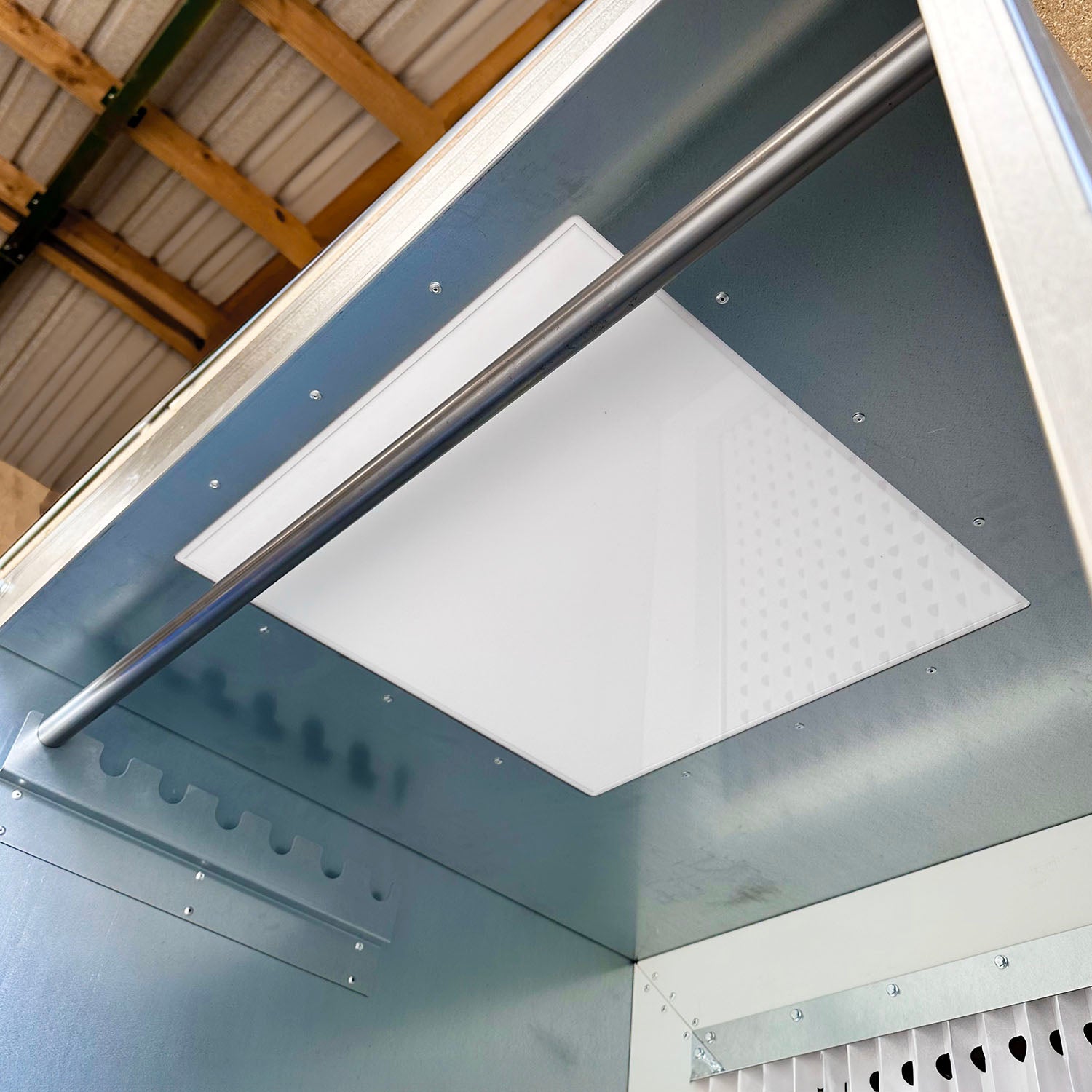

Let there be light! - Each booth comes with a pre-installed 600mm × 600mm super bright overhead LED panel and overhead light.

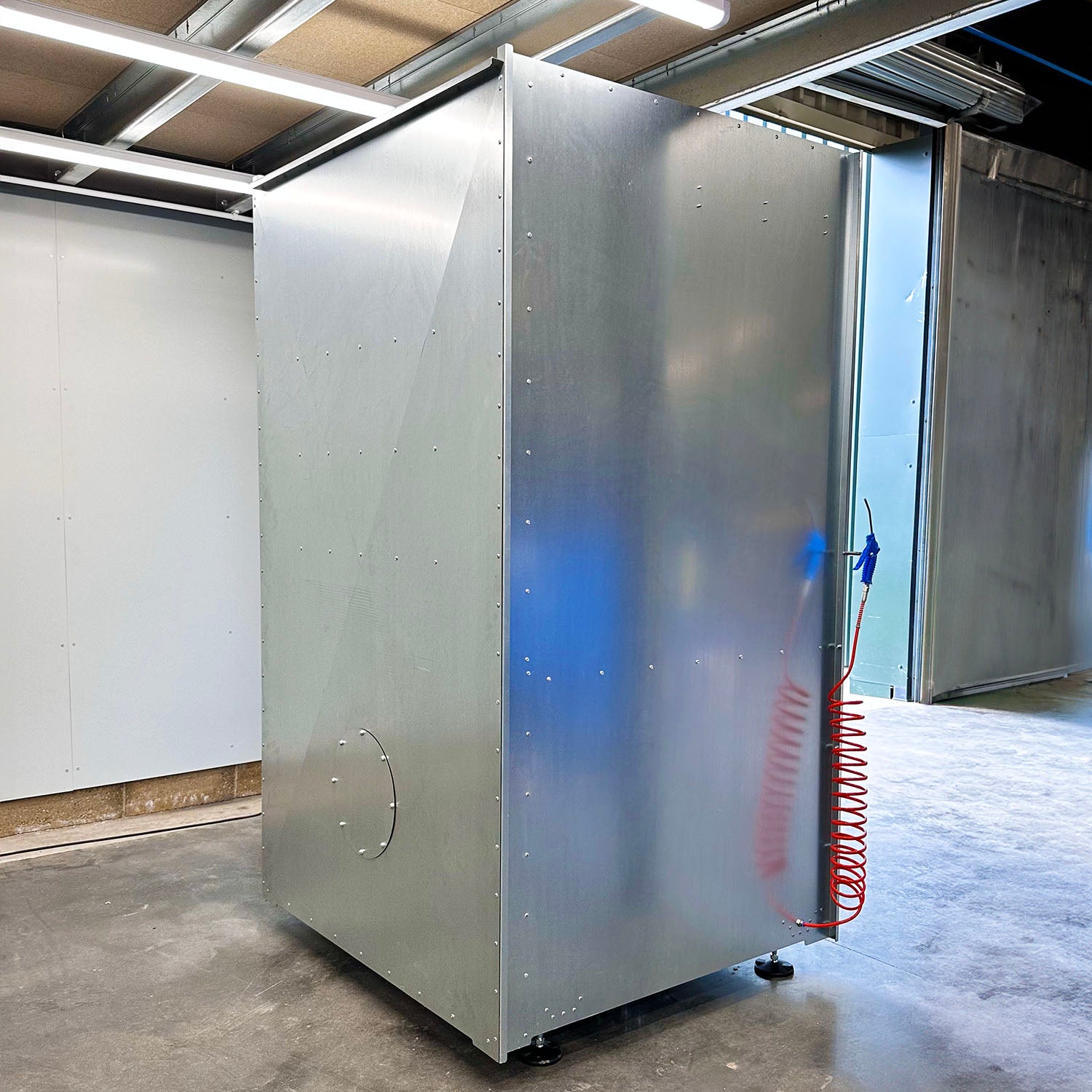

Heavy-Duty Design - This Spray Booth is fully constructed in the UK using Heavy Duty British galvanised steel

Additional extras - Two coiled airlines, one for air blower (air blower included) and one for spray gun.

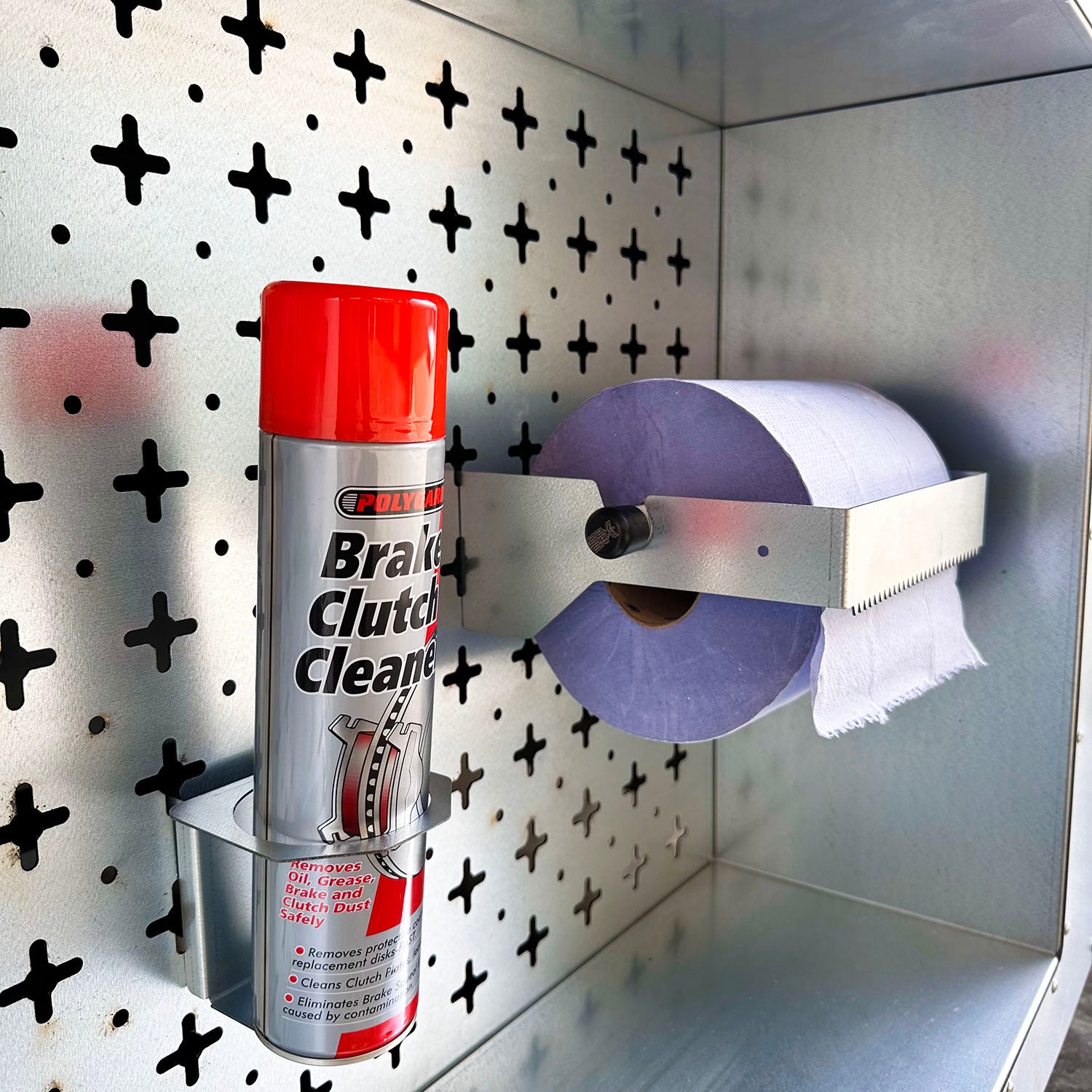

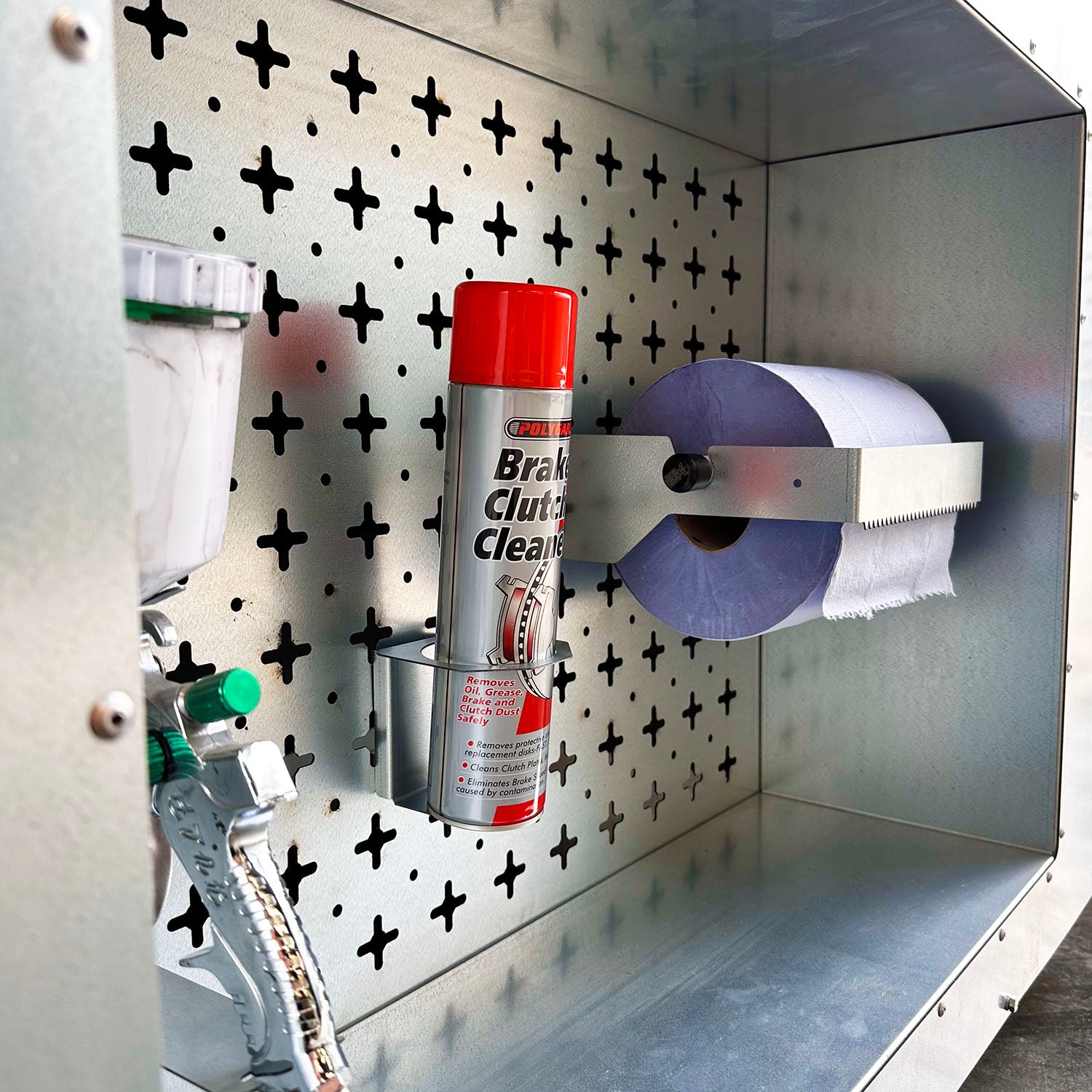

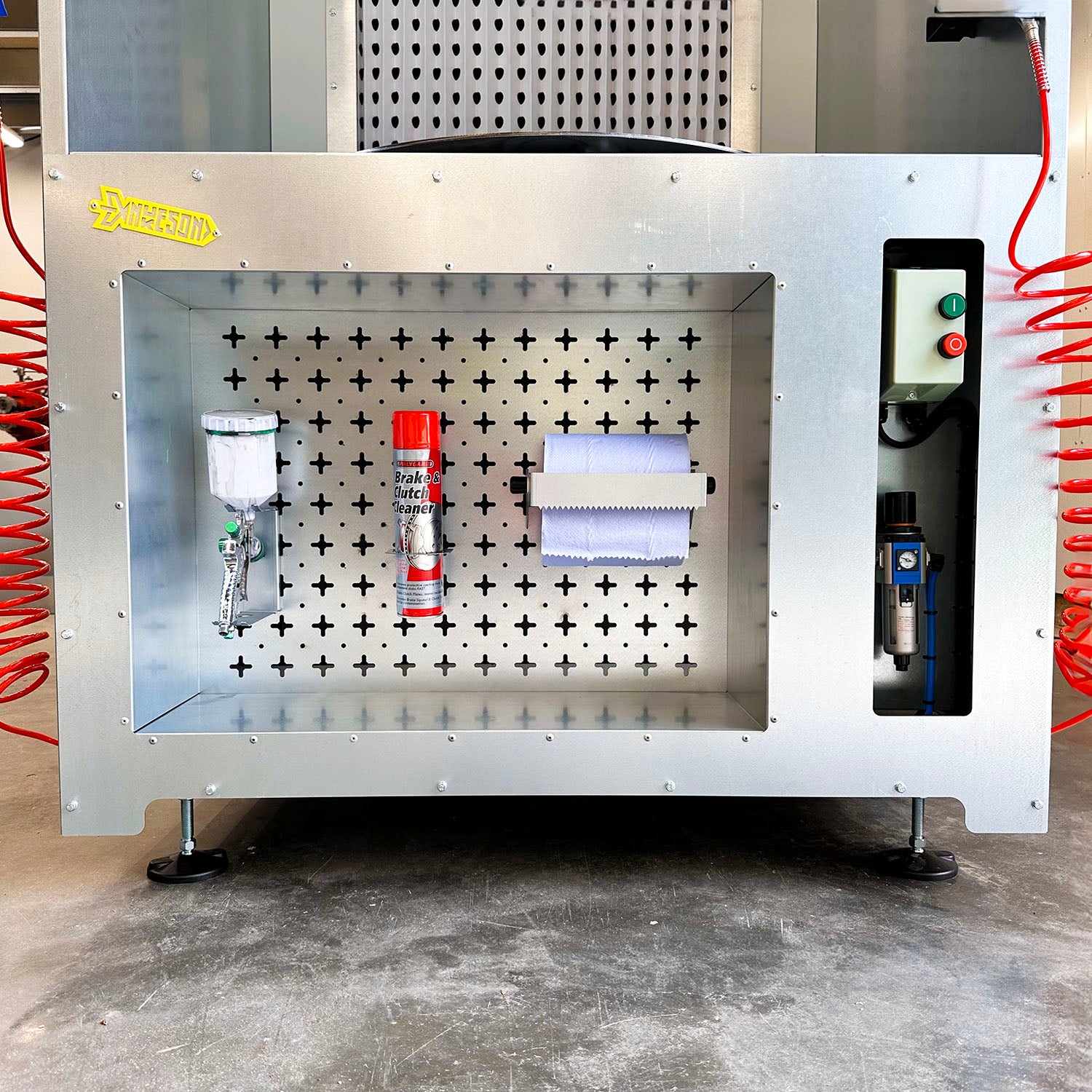

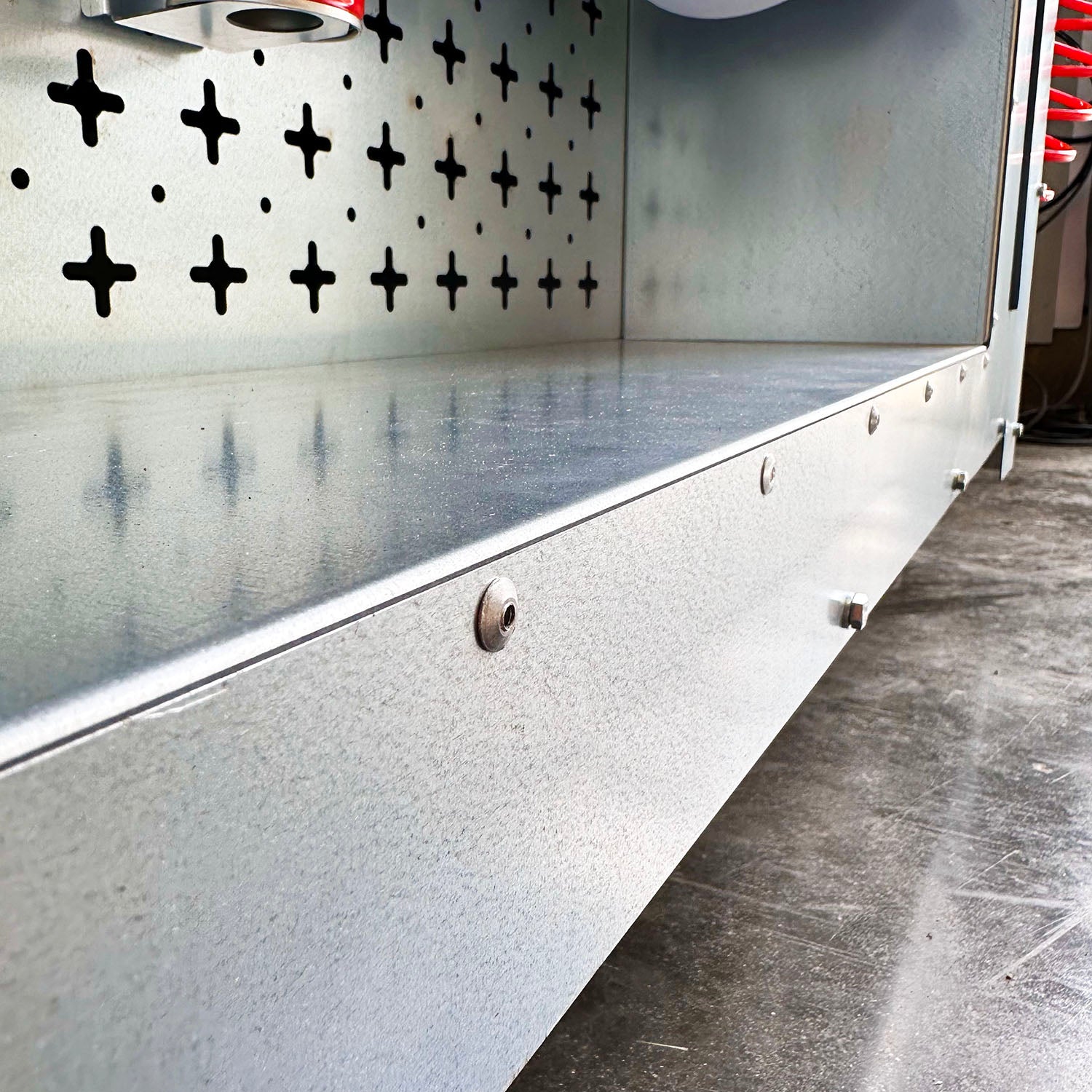

Nukeson Tool Wall Compatible - Panel at the front of the unit for customising tool layout. Attachments for Spray Gun, Blue Roll and Aerosol Can included too.

Base Feet - There are premium feet on the base, which still allow the whole unit to be easily lifted on a forklift for transportation.

Ventilation & Filtering:

Built-in 4300m3/h Air Flow Fan
The built-in suction system keeps paint fumes safely under control

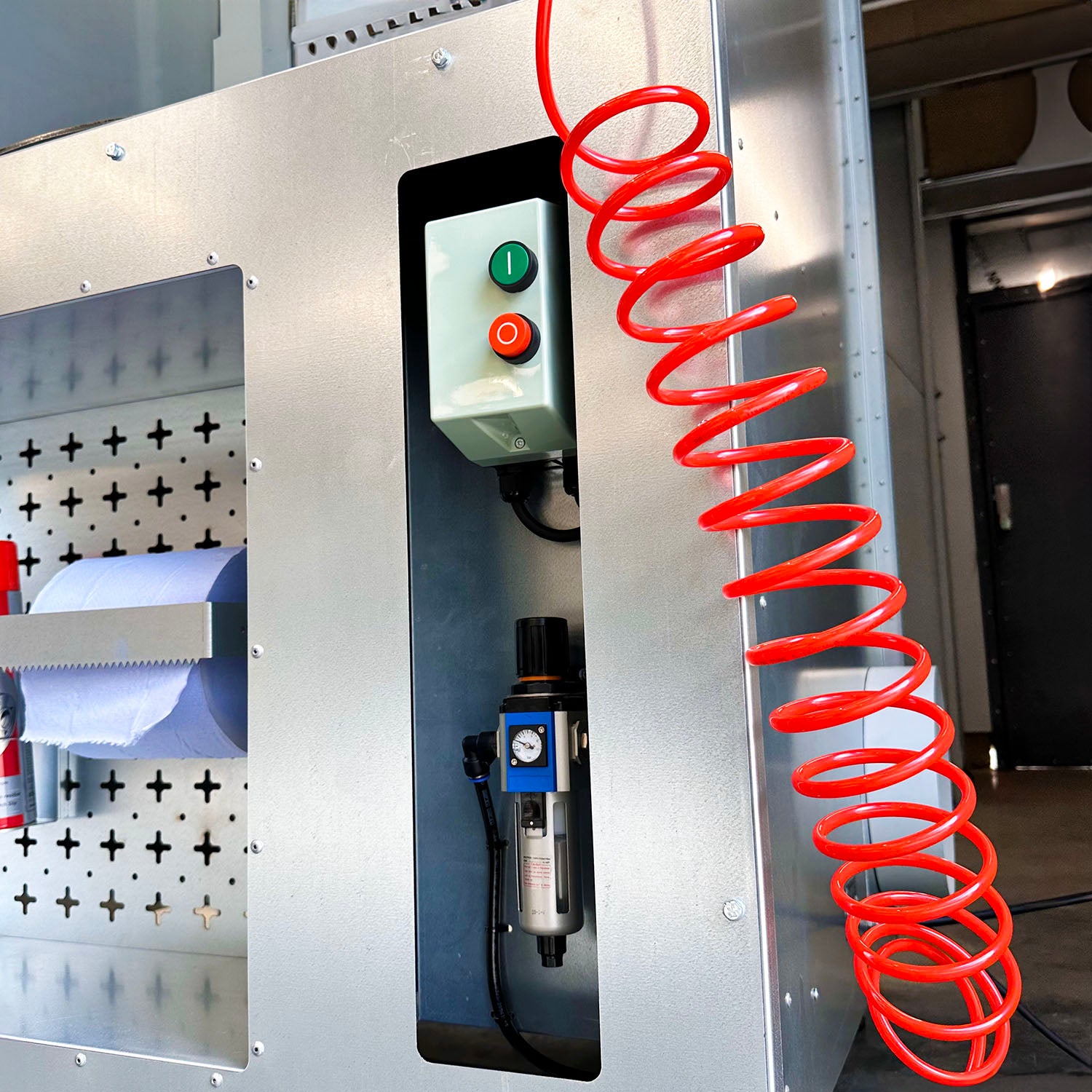

Built-in air pressure regulator system

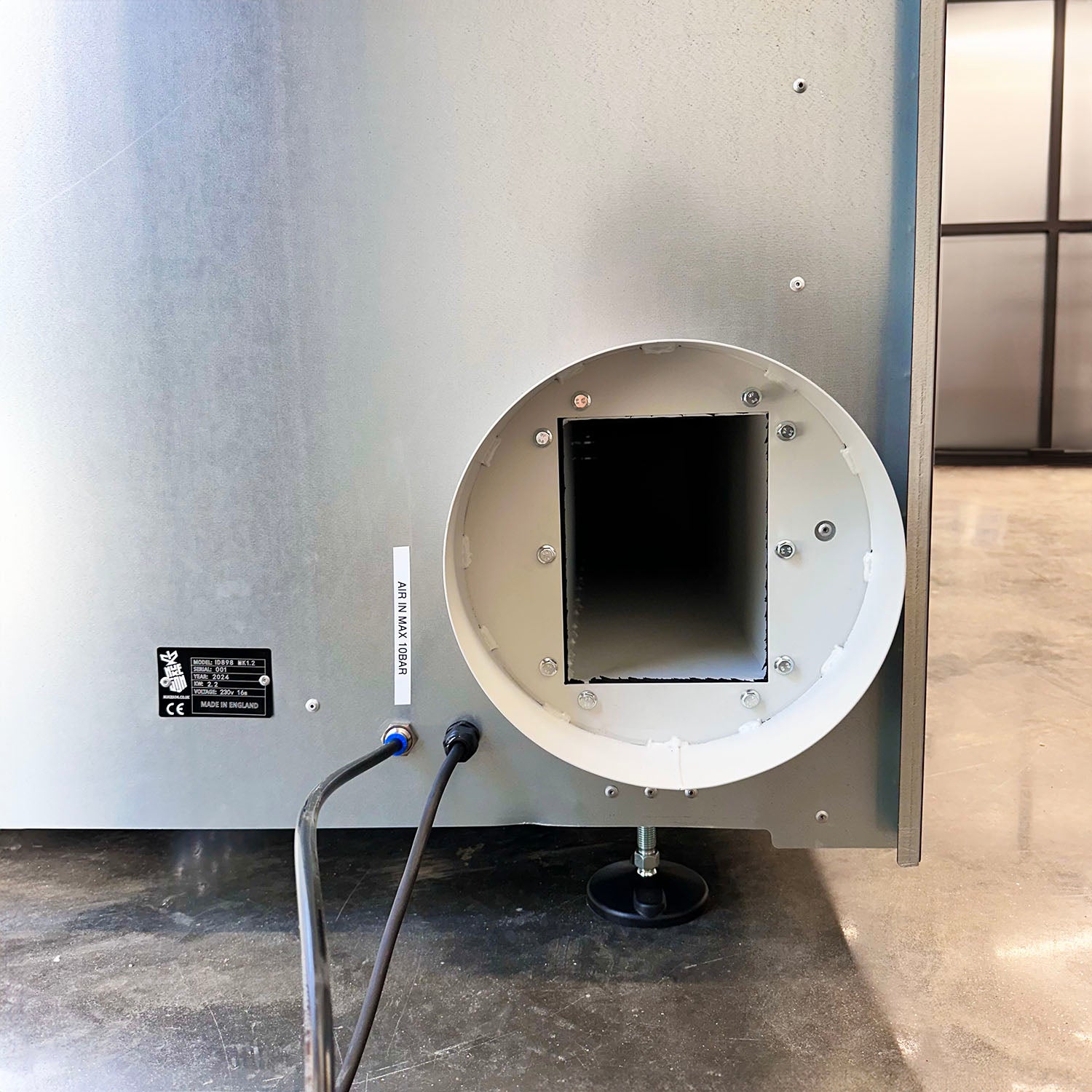

300mm booth outlet allows for ventilation ducting to be installed to the exterior of the building.

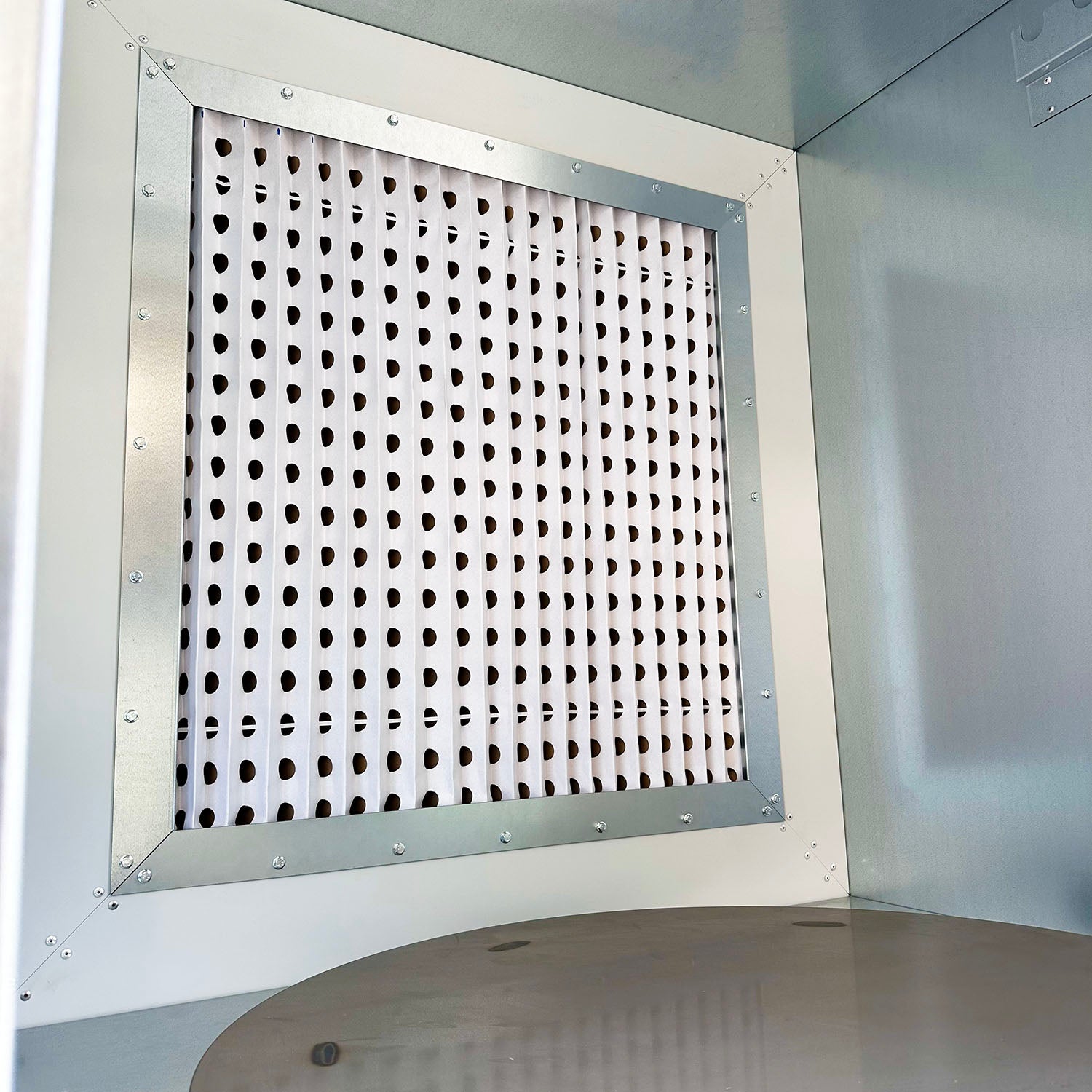

900mm paper filter located at the rear of the booth: 1 x filter supplied per booth

Power:

16A power supply required
Single-phase 240V
Built-in 3 HP / 2.2 KW - 3000 RPM electric motor

Delivery:

The Spray Booth will be delivered by pallet and will incur additional delivery fees.

Installation:

In all situations, we recommend that a qualified and trained electrician installs your Spray Booth.

Dimensions & Specs:

Total Height: 2100mm
Total width: 1200mm
Total Depth: 1100mm
Internal Height: 1200mm
Internal Width: 1150mm
Internal Depth: 1000mm
Turntable Diameter: 900mm
Turntable Weight Cap: 150+ kg
Weight (approx.): 350kg

Please note:

No paints or spray guns are included

One paper filter will be supplied per booth — Replacement filters are available here. We recommend using Binks filters, as this is what we use in the filter, we cannot provide guarantees for other makes of filter.

Spare parts are available, please get in touch with us to arrange this.

16 amp power supply required to install
